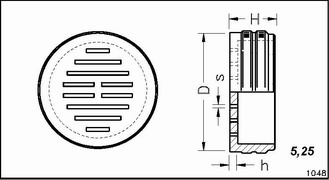

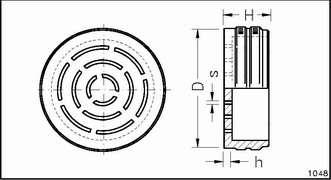

Дюзы, венты перегородчатые 11.40.10.00
| Артикль | D | H | h | s | Обозначение | шт. / уп. |
|---|---|---|---|---|---|---|
| 1161.0800 | 8 | 5,5 | 1,0 | 0,5 | Ringstegschlitzdüse 8/5,5 | 1000 |
| 1161.0801 | 8 | 7,0 | 1,0 | 0,5 | Ringstegschlitzdüse 8/7,0 | 1000 |
| 1161.1000 | 10 | 5,5 | 1,0 | 0,5 | Ringstegschlitzdüse 10/5,5 | 1000 |
| 1161.1001 | 10 | 7,0 | 1,0 | 0,5 | Ringstegschlitzdüse 10/7,0 | 1000 |
| 1161.1200 | 12 | 5,5 | 1,0 | 0,5 | Ringstegschlitzdüse 12/5,5 | 500 |
| 1161.1201 | 12 | 7,0 | 1,0 | 0,5 | Ringstegschlitzdüse 12/7,0 | 500 |
| 1161.1300 | 13 | 5,5 | 1,0 | 0,5 | Ringstegschlitzdüse 13/5,5 | 500 |
| 1161.1301 | 13 | 7,0 | 1,0 | 0,5 | Ringstegschlitzdüse 13/7,0 | 500 |
| 1161.1500 | 15 | 5,5 | 1,0 | 0,5 | Ringstegschlitzdüse 15/5,5 | 500 |
| 1161.1501 | 15 | 7,0 | 1,0 | 0,5 | Ringstegschlitzdüse 15/7,0 | 500 |
| Артикль | D | H | h | s | Обозначение | шт. / уп. |
|---|---|---|---|---|---|---|
| 1161.1002 | 10 | 5,5 | 1,0 | 0,5 | Stegschlitzdüse 10/5,5 | 1000 |
| 1161.1003 | 10 | 7,0 | 1,0 | 0,5 | Stegschlitzdüse 10/7,0 | 1000 |
| 1161.1202 | 12 | 5,5 | 1,0 | 0,5 | Stegschlitzdüse 12/5,5 | 500 |
| 1161.1203 | 12 | 7,0 | 1,0 | 0,5 | Stegschlitzdüse 12/7,0 | 500 |
| 1161.1302 | 13 | 5,5 | 1,0 | 0,5 | Stegschlitzdüse 13/5,5 | 500 |
| 1161.1303 | 13 | 7,0 | 1,0 | 0,5 | Stegschlitzdüse 13/7,0 | 500 |
| 1161.1502 | 15 | 5,5 | 1,0 | 0,5 | Stegschlitzdüse 15/5,5 | 500 |
| 1161.1503 | 15 | 7,0 | 1,0 | 0,5 | Stegschlitzdüse 15/7,0 | 500 |
